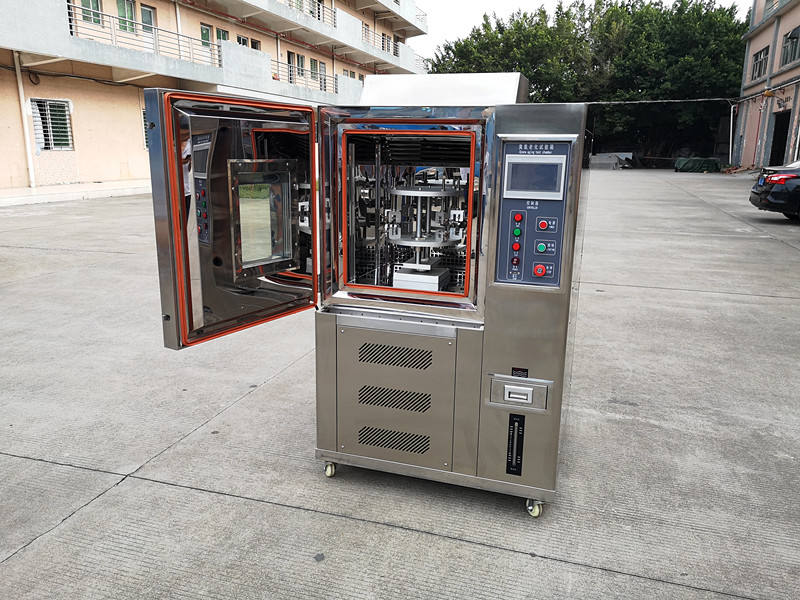

ASTM D1149 Dynamic Rubber Plastic Climatic Ozone Resistance Testing Machine Ozone Aging Test Chamber

Name: ASTM D1149 Dynamic Rubber Plastic Climatic Ozone Resistance Testing Machine Ozone Aging Test Chamber
Brand: SKYLINE
Price: 1 USD

ASTM D1149 Dynamic Rubber Plastic Climatic Ozone Resistance Testing Machine Ozone Aging Test Chamber Manufactures

Brand Name : SKYLINE

Model Number : SL-E20

Certification : ISO,ASTM

Place of Origin : CHINA

MOQ : 1PCS

Price : Negotiate

Payment Terms : L/C, D/A, Western Union, T/T

Supply Ability : 10pcs per month

Delivery Time : 7 working days

Packaging Details : Polly wood case

Temperature : RT+10~90 ℃

Humidity : 30% - 98%R.H

Temperature fluctuation : ±0.5℃

Temperature deviation : ± 2.0 ℃

Humidity deviation : ± 2.5% RH

Cooling rate : Ambient~ 0℃ within 20 min

Ozone concentration : 1~1000PPHM

Sample holder rotate speed : 0~10 r/min

Airflow rate : 0 ~ 60L/min

Clamps tensile stretch : 5%~35%

Temperature Sensor : PTR Platinum Resistance PT100Ω/MV

Humidity sensor : Dry and wet bulb sensor

Heater : Nichrome heater

Cooling system : Mechanical compression refrigeration system

Humidifier : External isolation, stainless steel surface evaporation humidifier

Dehumidification system : Evaporator

Air circulation : Centrifugal wind fan

Safety device : Humidifier dry-combustion protection; over-temperature protection; over-current protection; Refrigerant high-pressure protection; Water shortage protection, Earth leakage protection

Exterior material : Steel Plate with protective coating

Interior material : SUS304 stainless steel

Thermal insulation : Polyurethane foam

Observation window : Interior lighting, double-layer thermostability silicone rubber sealing

Contact Now

ASTM D1149 Ozone Resistance Test Chamber

Descriptions

The electronic Rubber aging Ozone Resistance Test Chamber is applicable for rubber or elastomer's resistance to ozone degradation. The elastomer samples are placed in a dynamic specimen holder in chamber that exposes them to ozone at concentration and duration specified by a testing specification or standard.

Main features

The ozone gas produced by the equipment from the silent high-efficiency ozone generator and a certain amount of treated air are mixed in the exchanger and then sent into the test chamber. The ultraviolet detector will feed back the ozone concentration continuously detected online to the ozone generator control system, so that the control system can effectively control the occurrence of ozone according to the set value, so that the test chamber can maintain the appropriate ozone concentration and meet all test conditions when the heating and humidification system works

Standard

JIS K 6259, ASTM D1149 ,ASTM D1171, ISO1431, DIN53509, GB/T13642

GB 2951 (ozone resistance test method for wires and cables) and GB/T 7762-2003 (vulcanized rubber or thermoplastic rubber-ozone cracking resistance-dynamic tensile test).

Application industry

Widely used in measurement and quality inspection; Rubber and plastic; Automobile production; Wire and cable; packaging; Instruments and Apparatuses; medical apparatus and instruments; Civil nuclear energy; Civil aviation; Colleges and universities; Research Institute; It is used for quality inspection of rubber printing products such as commodity inspection arbitration and technical supervision departments.

Test process

The length of the sample is basically parallel to the direction of the air flow when the sample is in contact with the ozonated air when the two ends of the sample are fixed on the rotating aluminum fixture under the specified elongation. Before the adjustable travel range of the sample is 0-40 mm, the sample rotates at a speed of (20~25) mm/s, so that each sample moves continuously along the same path in a plane perpendicular to the air flow. The time for the same sample to rotate for one cycle is (8~12) min, and the scanning area of the sample is about 40% of the effective area of the test chamber.

Technical parameters

Capacity	150L	250L	500L	800L
Internal dimensions (mm)	500500600	600600700	700800900	8001000100
Overall dimensions (mm)	96011501750	96011501860	118013502010	128015502110
Temperature range	0~100℃
Humidity range	30%-98%RH
Temperature fluctuation	±0.5℃
Temperature deviation	±2.0℃
Humidity deviation	±2.5%RH
Cooling rate	Ambient~0℃ within 20 min.
Ozone concentration	1~1000PPHM
Sample holder rotate speed	0~10r/min
Airflow rate	0~60L/min
Clamps tensile stretch	5%~35%
Temperature sensor	PTR Platinum resistance PT100Ω/MV A-Class
Humidity sensor	Dry and wet bulb sensor
Heater	Nichrome heater
Cooling System	Mechanical compression refrigeration system
Compressor	French TECUMSEH compressor
Humidifier	External isolation, stainless steel surface evaporation humidifier
Dehumidification system	Evaporator
Air circulation	Centrifugal wind fan
Safety device	Humidifier dry-combustion protection, over-temperature protection,over-current protection, Refrigerant high-pressure protection, Water shortage protection,Earth leakage protection;
Exterior material	Steel Plate with protective coating
Interor material	SUS304 stainless steel
Thermal insulation	Polyurethane foam
Observation window	Interior lighting, double-layer thermostability silicone rubber sealing
Power & voltage.	AC380V 50HZ
