Footwear Torsion Testing Machine Whole Shoes Torsion Test Equipment

SKYLINE INSTRUMENTS CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

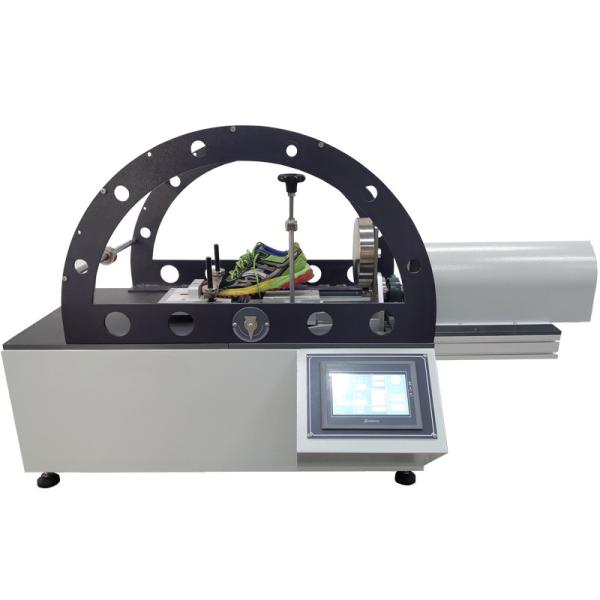

Footwear Torsion Testing Machine Whole Shoes Torsion Test Equipment

  • 1
  • 2
  • 3

Brand Name : SKYLINE

Model Number : SL-T12S

Certification : CE

Place of Origin : CN

MOQ : 1 unit

Price : negoitable

Payment Terms : Western Union, MoneyGram, T/T

Delivery Time : 15 work days

Packaging Details : plywood case

Test capacity : 50N • m

Power resolution : 1 / 50,000

Control system : PLC control

Heel lifting angle : 25 ± 0.5 ° (0 ~ 40 ° can be set)

Torsion angle : ~ ± 40 ° can be set

Angle resolution : 0.1 °

Speed : 0 ~ 5rad / min can be set

Volume : 1360 × 440 × 900mm

Weigh : 65kg

Power supply : 220V 50Hz

Contact Now

Footwear Torsion Testing Machine

Product introduction

This machine is mainly used to test all kinds of torsional strength tests of finished shoes.

lFix the sole on the test platform, adjust the position of the platform, use manual positioning to lift the shoe to a certain angle, and then twist the shoe to test the maximum torque experienced by the shoe during the test again.

Standard

GB/T 32024-2015.

Technical parameter

Test capacity

50N • m

Resolution

1 / 50,000

Control system

PLC control

Heel lifting angle

25 ± 0.5 ° (0 ~ 40 ° can be set)

Torsion angle

0 ~ ± 40 ° can be set

Angle resolution

0.1 °

Speed

0 ~ 5rad / min can be set

Volume

1360 × 440 × 900mm

Weight

65kg

Power supply

220V 50Hz
