Lab Testing Equipment Horizontal Tensile Testing Machine

Name: Lab Testing Equipment Horizontal Tensile Testing Machine
Brand: Skyline
Price: 1 USD

Brand Name : Skyline

Model Number : Lab Testing Equipment

Certification : ISO

Place of Origin : China

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Delivery Time : 15 working days

Packaging Details : polywood case

Test space : 15m

Range : 1000KN

Measuring range : 10~1000KN

accuracy level : Grade 1

Piston stroke : 1000mm

Cylinder diameter : 280mm

Contact Now

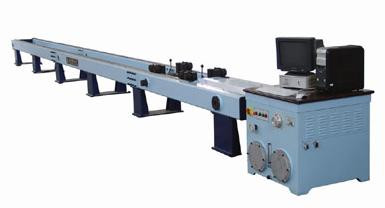

Horizontal Tensile Testing Machine

Description of lab testing equipment:

The microcomputer controlled horizontal tensile testing machine adopts the characteristics of hydraulic force application, computer automatic data collection, printing results, convenient operation, high test accuracy, and stable force application. It can be used for tensile, tensile shear, tear and other mechanical properties tests of metal, non-metal and other materials, and can meet various test methods and standards such as ISO, GB. This equipment is widely used in wire and cable industry and quality inspection institutions at all levels.

Technical parameter:

Range	1000kN
Resolving power	1/250000
Measuring range	10kN－1000kN
Indication accuracy level	Grade 1
Piston stroke	1000mm
Displacement measurement range	0-1000mm
Displacement resolution	0.007mm
Displacement accuracy	±1％
Test speed range	0.5-100mm/min
System working pressure	20MPa
Cylinder diameter	280mm
Motor power	5.5kW
Maximum test space	15m
