Strength Testing Equipment ISO 8124-4 , Dynamic Testing Machine For Barriers / Handrails

Name: Strength Testing Equipment ISO 81244 Dynamic Testing Machine For Barriers Handrails
Brand: SKYLINE
Price: 1 USD

Strength Testing Equipment ISO 8124-4 , Dynamic Testing Machine For Barriers / Handrails Manufactures

Brand Name : SKYLINE

Model Number : SL-S135

Certification : CE

Place of Origin : CHINA

MOQ : 1 UNIT

Price : Negoitable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1 unit / month

Delivery Time : 30 working days

Packaging Details : Plywood case

SKYLINE : Dynamic strength Tester for Barriers and Handrails

Standard : ISO8124-4 6.3

Load : 25+/-1kg

Drop Height : 125+/-10mm

Impact Force : 30J

Sample height : 90-240cm

Contact Now

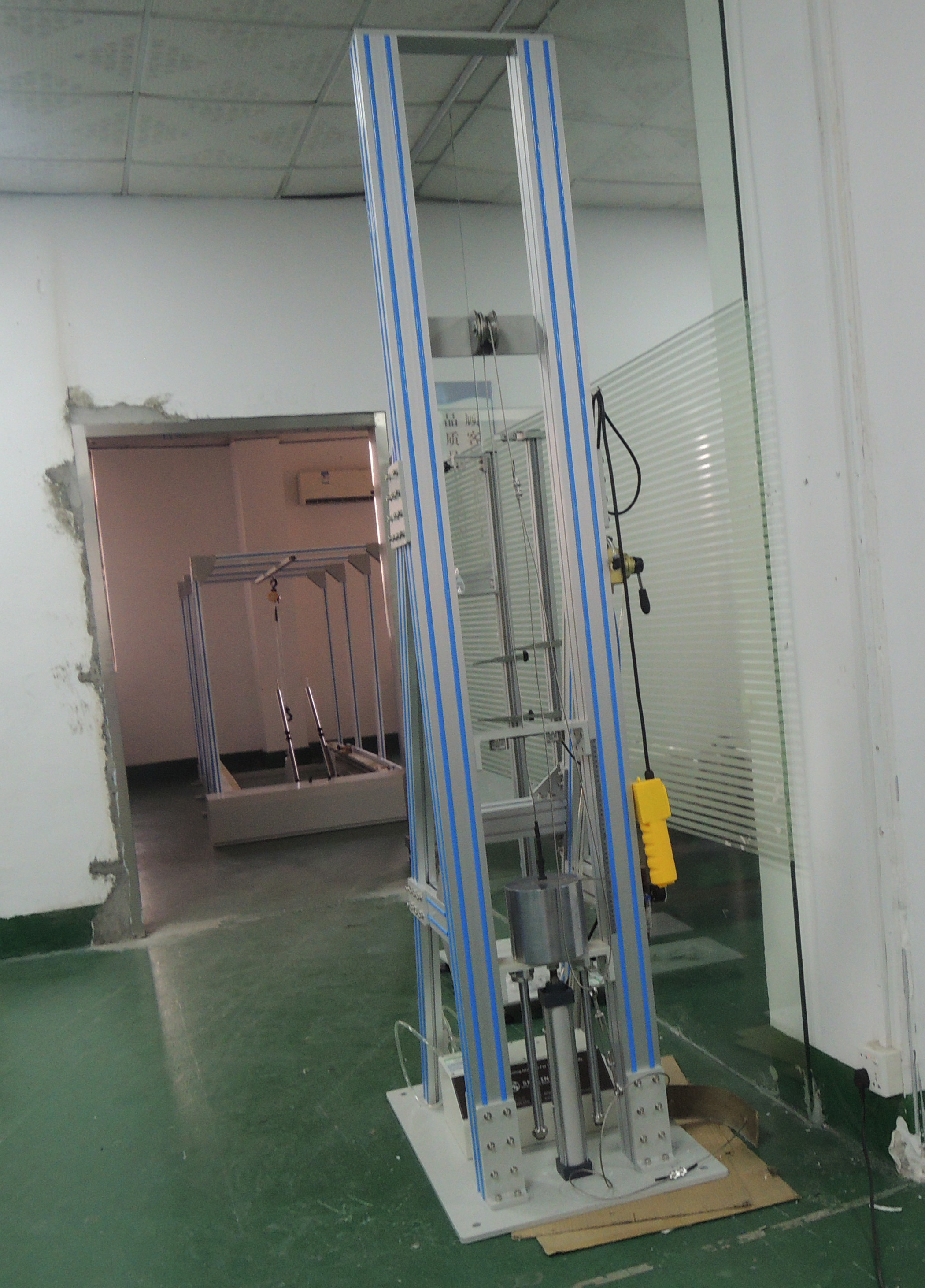

ISO8124-4 Dynamic strength Tester for Barriers and Handrails Toys Testing Equipment

Application

A sudden horizontal impact stress is applied to the barrier or handrail, through a pad, by a falling load.

Determine of the dynamic strength of barries and handrails.

Parameters

Load	25+/-1kg
Drop Height	125+/-10mm
Impact method	free fall
Impact Forec	30J
Sample height	90-240cm
Weight	approx 140kg

Standards
EN 71-8 clause 6.4, ISO 8124-4 6.3

Procedure
Assemble the toy in accordance with the manufacturer's instructions and place or fix it on a rigid horizontal
surface.
Place and secure the pad to the top of the barrier or handrail at the most onerous position and without causing
any damage to the toy. Attach the free end of the rope to the pad.
Arrange the rope and the pulley so that the load hangs freely. Raise the load vertically 125 mm ± 10 mm and
let it drop freely (this will give an impact energy of approximately 30 J). Within 10 s, remove all tension from
the barrier.
Observe whether the toy still complies with the relevant requirements of this part of ISO 8124.

Barriers and Handrail Dynamic Strength Testing Mac...

Strength Testing Equipment ISO 8124-4 , Dynamic Testing Machine For Barriers / Handrails
