Lab Testing Equipment Manual Test Stand for Compression and Tensile Testing of Small Samples

Tension Test Stand

Product information

Manual test stand is a compact and economical solution for compression and tensile testing of small samples. The use of a hand wheel provides for more precise testing with greater consistency in testing results. An optional dial indicator kit displays up to 1" of displacement. Use this stand with force gauges and grips to create complete & economical systems.

Application

Applicable to various industries and scientific research institutions for tensile and compressive load, insertion force, destructive force test and other tests. The frame adopts gear pair transmission and manual pressure operation.

The height of the frame can be adjusted up and down, and the dynamometer is moved up and down with a positioning structure.

Features

manual loading, vertical installation; simple operation, compact structure, fast and stable.

Technical Parameters
Maximum load: 500N;
Test stroke: 70 mm;
Dimensions: 235*150*430 (mm)
Weight: 12Kg
Installation back plate size: 145 * 30mm 4-M3 screws

This Tester is in stock, can be shipped immediately.

abrasion testing equipment

physical testing equipment

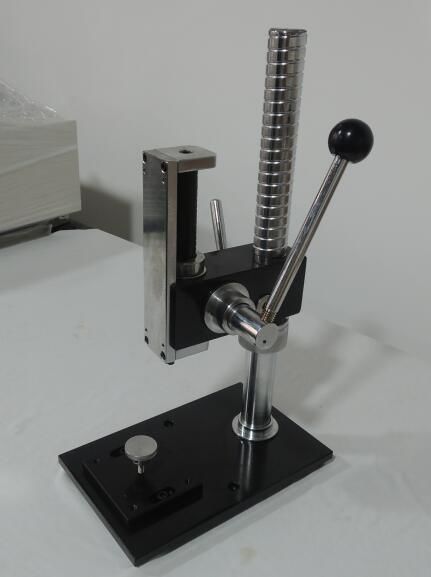

Lab Testing Equipment Manual Test Stand for Compression and Tensile Testing of Small Samples Images
